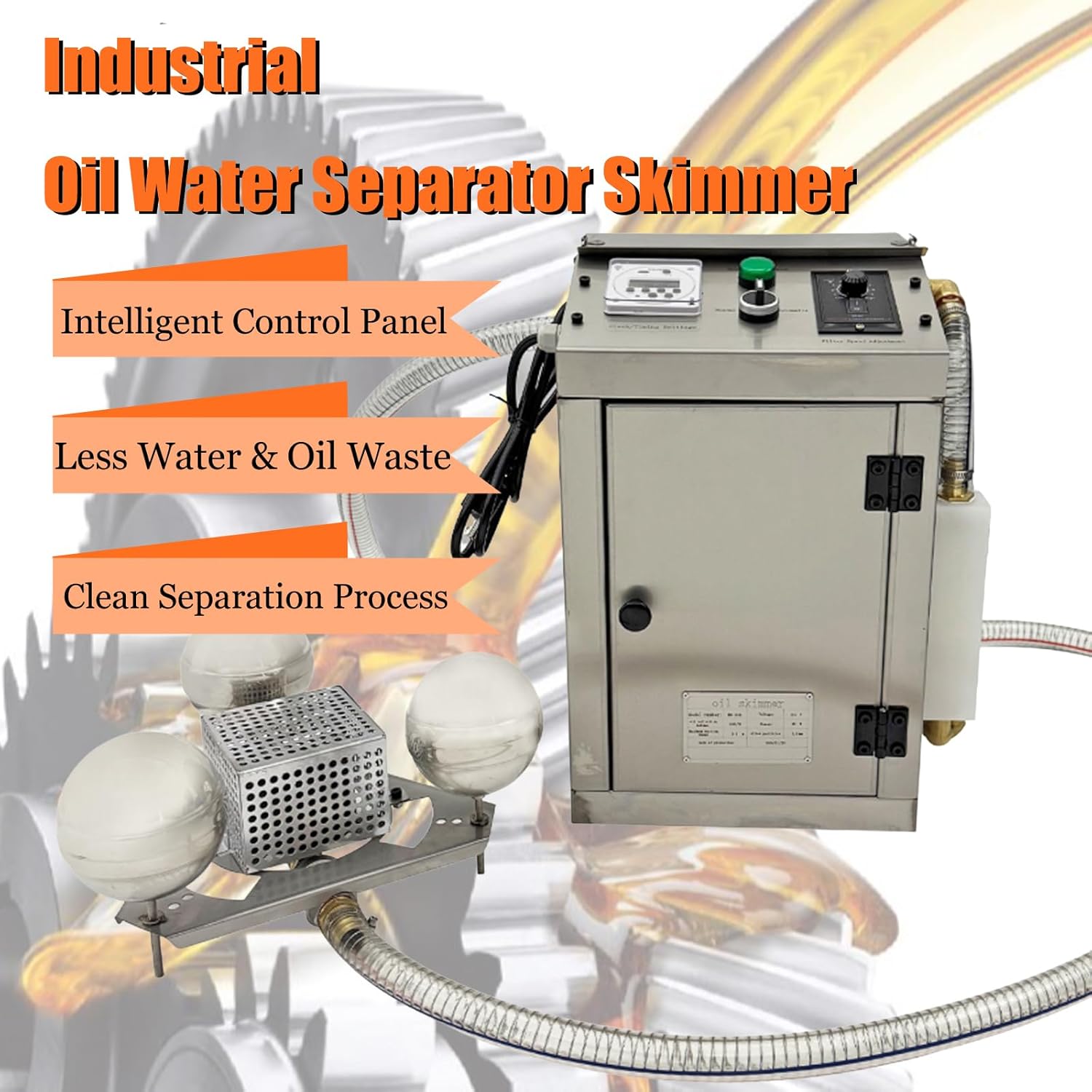

Industrial Oil Water Separator Oil Water Separator Skimmer with 0-13.2gal/H (0-50L/H) Separate Recoverty Capacity for Cutting Fluid Industrial Machine Tool, AC110V

Product Parameters Voltage: AC110V Power: 25W Oil recovery capacity: 0-13.2gal/H (0-50L/H) Allowed particle size: 0.08" (2.0mm) Water tank capacity: 2.6gal (10L) Water inlet pipe inner diameter: 1/2"(12.7mm) Return pipe inner diameter: 3/4"(19.05mm) Oil drain pipe inner diameter: 3/4"(19.05mm) Adapt to pH value: pH5-11 Liquid temperature: 0-70 ℃ Absorbable viscosity: ≤ 1200 cst Maximum suction range: 0-3.3ft (0-1m) Machine size: 14.2*13.4*16.9" (36×34×43cm) Package size: 20.1*16.1*21.3" (51×41×54cm) Net weight/Gross weight: 28.4lbs(12.9kg) / 32.2lbs(14.6kg) One package includes Oil Water Separator *1 Accessory Kit *1 Please note that When it is not used for a long time, the oil, water and impurities in the separation tank and adsorption device must be cleaned and placed in a dry place

• Main Parameters: Voltage: AC110V, Power: 25W, Oil recovery capacity: 0-13.2gal/H (0-50L/H), Allowed particle size: 0.08" (2.0mm). Water tank capacity: 2.6gal (10L), Water inlet pipe inner dia: 1/2"(12.7mm), Return pipe inner dia: 3/4"(19.05mm), Oil drain pipe inner dia: 3/4"(19.05mm), Adapt to pH value: pH5-11, Liquid temperature: 0-70 ℃, Absorbable viscosity: ≤ 1200 cst, Maximum suction range: 0-3.3ft (0-1m)
• Intelligen Control Panel: The industrial oil water separator adopts intelligent integrated design control panel, clean operation buttons, the panel is designed with timing, speed control and manual/automatic operation mode and other functions, you can easily adjust the working parameters as needed
• Less Water and Oil Waste: The water inlet of inlet check valve ensures that the cutting fluid and waste oil mixture can enter the separator smoothly, and the separated oil and water will be recycled through the oil drain and the return port respectively to reduce unnecessary waste
• Wide Application Scope: The oil-water separator can separate the surface floating oil in the machine tool water tank from the cutting fluid, and also separate the floating oil on the surface of other water-based, water-based cutting fluid and water-based liquid, however, please note that this machine is not suitable for the liquids of grinding machine and wire cutting machine containing powder, organic solutions and other liquids containing acid and alkali
• Clean Separation Process: There is a purge valve at the bottom to purge sludge from the bottom of the tank and keep the system clean and efficient operation, in addition, there are two separation tanks inside the separator, the tank can greatly separate the oil and water to maintain a clean working spece and performance of the cutting fluid
