3" Deep Well Submersible Pump,3/4 HP, 230V, 60 Hz, 13 GPM, 247FT Max Head, Stainless Steel, Heavy Duty, M#05540

Specifications: 3" deep well submersible pump. This Pump will fit in a 4" well casing. 3/4 HP, 230V, 9.2 Amps, 1.25” NPT discharge. 247' max head. Industrial grade heavy duty, also good for home usage. Heavy duty motor. Unit weighs almost 40 lbs. 247 max head is to an open tank. For pressure tanks, buyer MUST read the Selection Guide! Shell, motor shaft are made with stainless steel to ensure corrosion resistance. High quality sealed ball bearings guarantee its excellent performance. Hermetically sealed motor has a built in capacitor start, and thermal protection to prevent overheating, for longer life and powerful start. This pump uses high quality and high efficient approved motor, and uses less energy This is a 2 wire pump with 3-Wire (2 wires + ground wire) 33' long electric cord comes with this submersible deep well pump. Heavy-duty thermoplastic impellers, diffusers, and intake screen. High efficiency, hermetically sealed motor is thermally protected to prevent overheating, and uses less energy. This pump has a built in check valve. Unique design reduces its noise. Installation user's manual are included.

• ★【Well Pump Technical Specifications】3" deep well submersible pump. 3/4 HP, 230V, 9.2 Amps , 1.25” NPT discharge；Max outside diameter 3.3", can fit in a 4" casing.
• ★【Economy & Effective Submersible Water Pump】13GPM max & 247ft head are greater than almost all other 3/4HP well pumps, and comparable to other pumps, but uses less electricity.

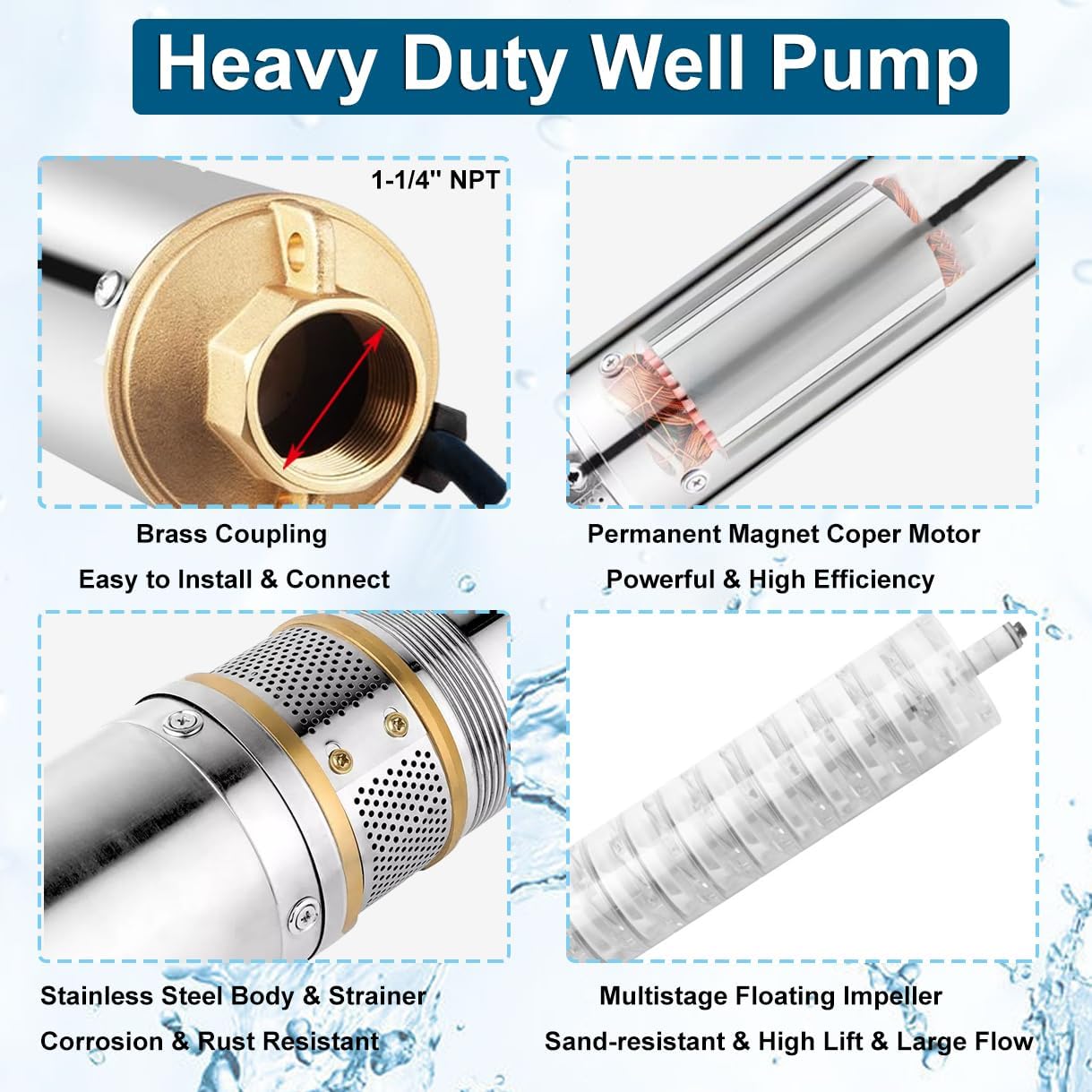

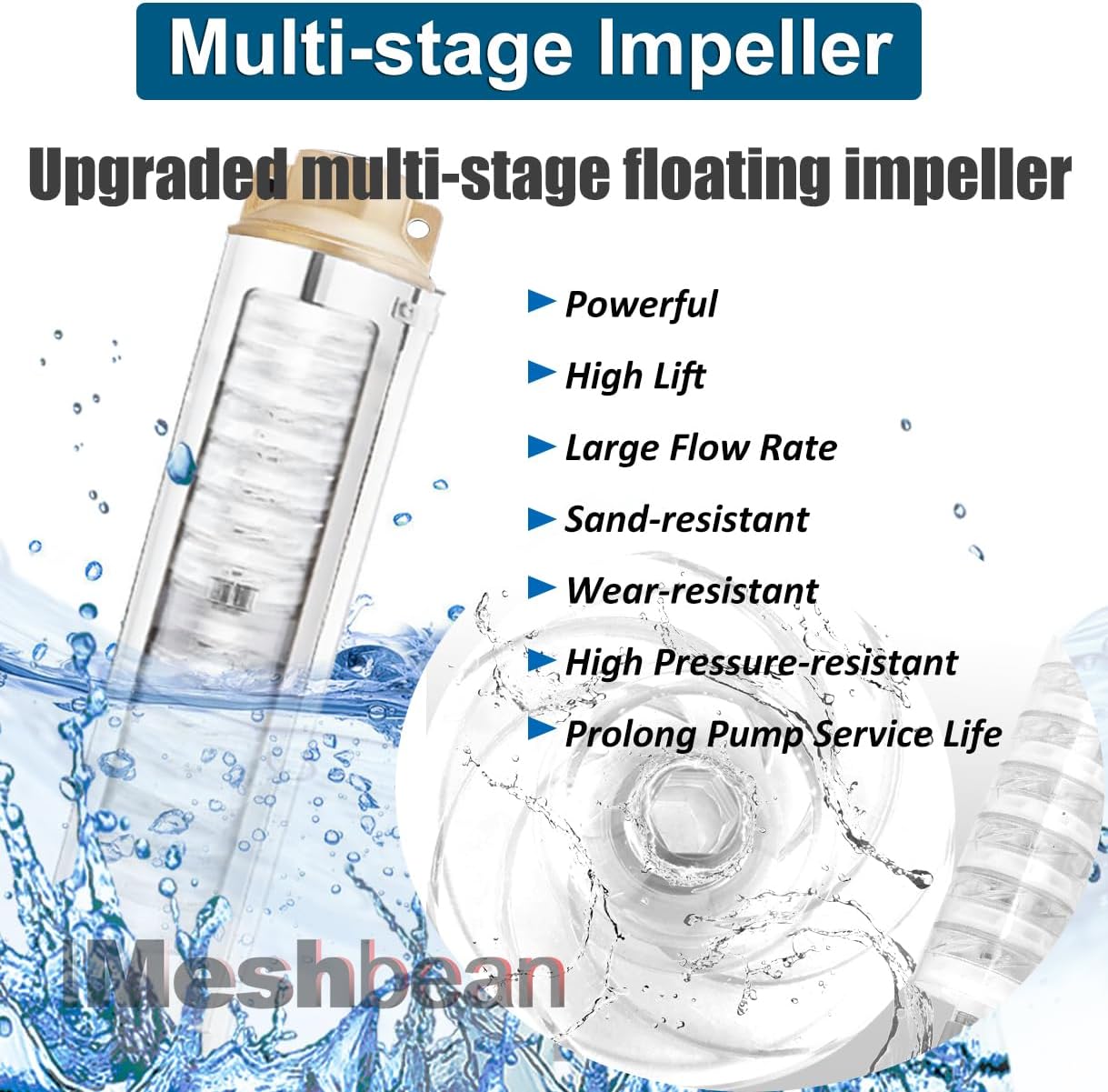

• ★【Outstanding Well Pumps】33' long electric cord comes with this submersible deep well pump.Stainless steel body& thermoplastic impellers -industrial grade heavy duty - guarantees high durability and long-lasting use;
• ★【Deep Well Pump with Built-in Controlbox & Check Valve】Built in control box. This pump DOES NOT require an external control box! (Note: this item is with a built-in control box, it is for thermal protection, short-cut protection and overload protection, do not have power on-off function.)

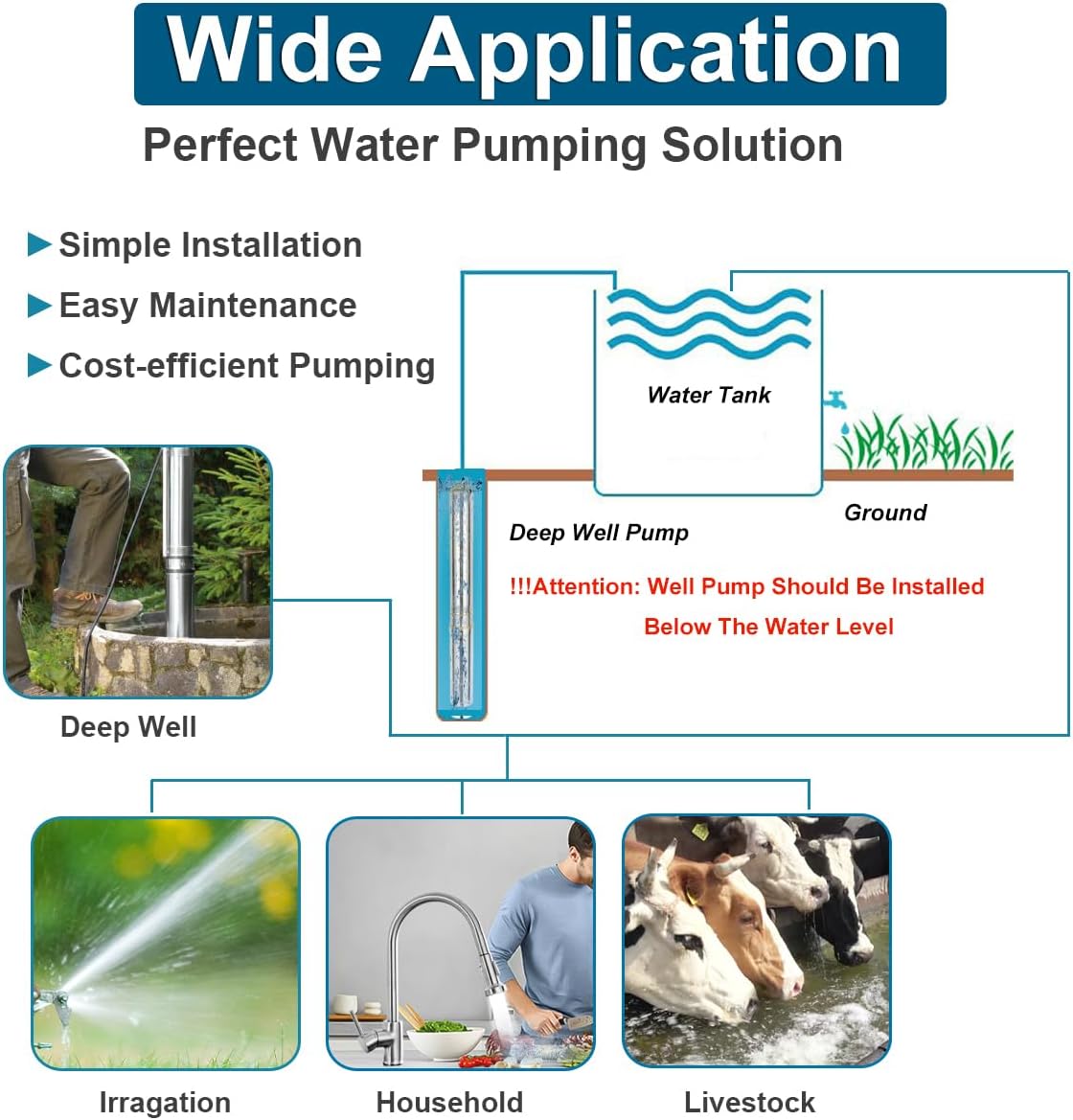

• ★【Submersible Pump Wide Application Wide Application】 Perfectly convenient for use at home and for factory usage;can be implemented in different types of wells-ash pipe wells, steel pipe wells, or soil wells；Can be used for extracting water from reservoirs, canals, rivers, open water tanks and other water lifting works
